Clear screw holes

Sometimes a speaker surround overlaps the area where the screw that secures the speaker to the cabinet turns. When the screw is tightened, the force of the rotating screw may deform the surround.

Screw deforms the foam surround of a woofer.


In these cases we recommend cutting the speaker surround slightly so that the screw runs freely. This way the speaker surround remains in shape when the screw is tightened. The Surround can be cut before or during gluing. Semi-circular cuts give the best results.

Foam surround with cut triangular recess for the screw


Foam surround with cut triangular recess for the screw


Foam surround with cut circular recess for the screw


Foam surround with cut circular recess for the screw, the screw cannot damage the foam surround

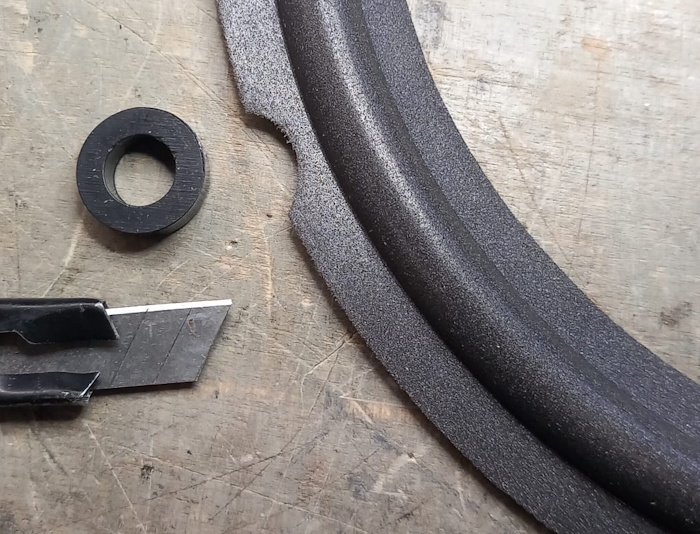

For advanced users, there is another way to create slightly larger, neat round cutouts:
For advanced users, there is another way to create slightly larger, neat round cutouts of a speaker surround

Procedure:
  • Place the speaker surround on the speaker unit
  • Check where the surround aligns with the screw holes
  • Mark the location of the screw holes on the surround
  • Using a ring, cut or snip the cutouts out of the speaker surround at the correct locations.
